1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Package Includes
8x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG Extension Cable with MC4-MC4
8x Z Mounting Bracket
Battery Bank Options-
5.12kWh Lithium Battery Bank (optional)
with
1x 48V(51.2V) 100Ah Server Rack Battery
1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair

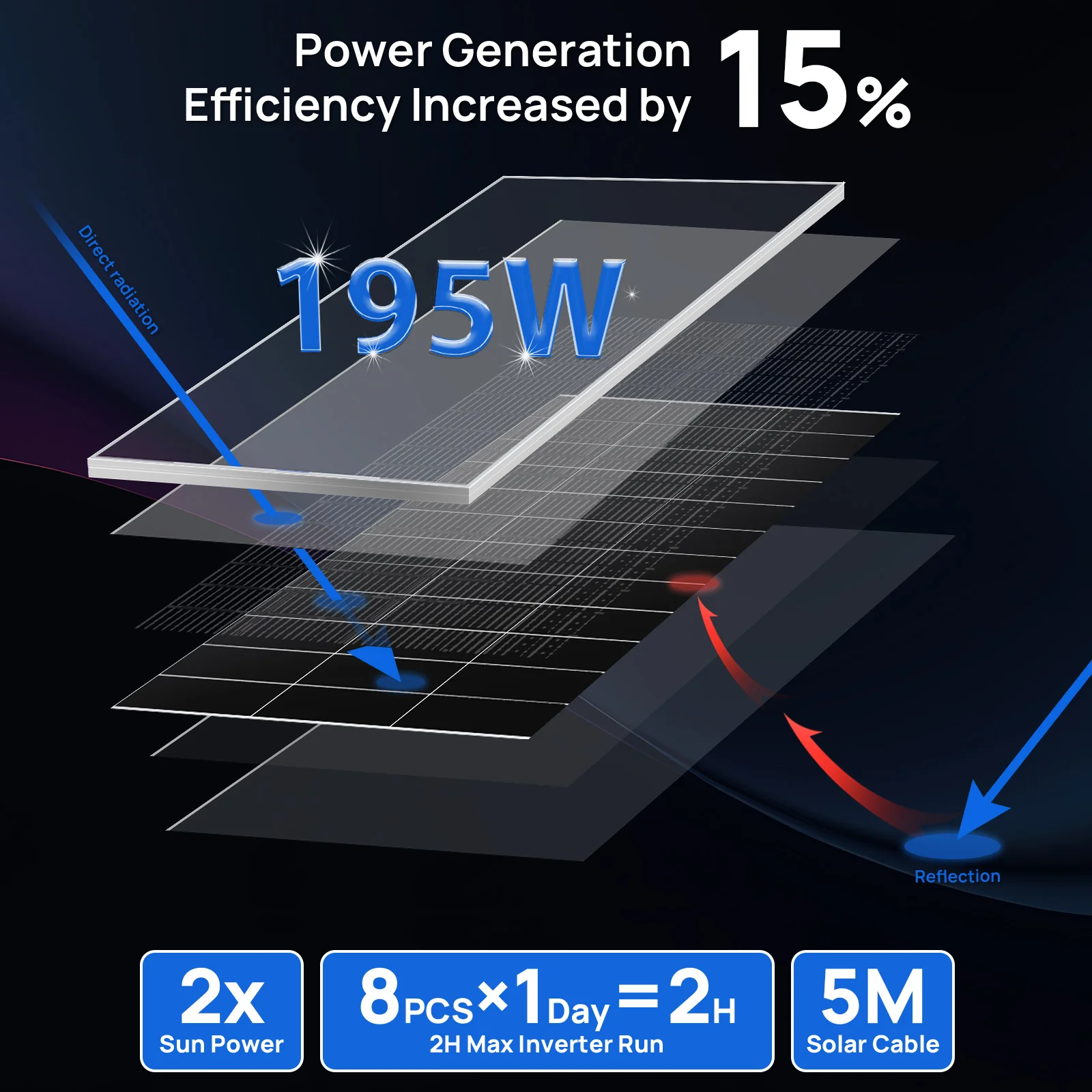

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |

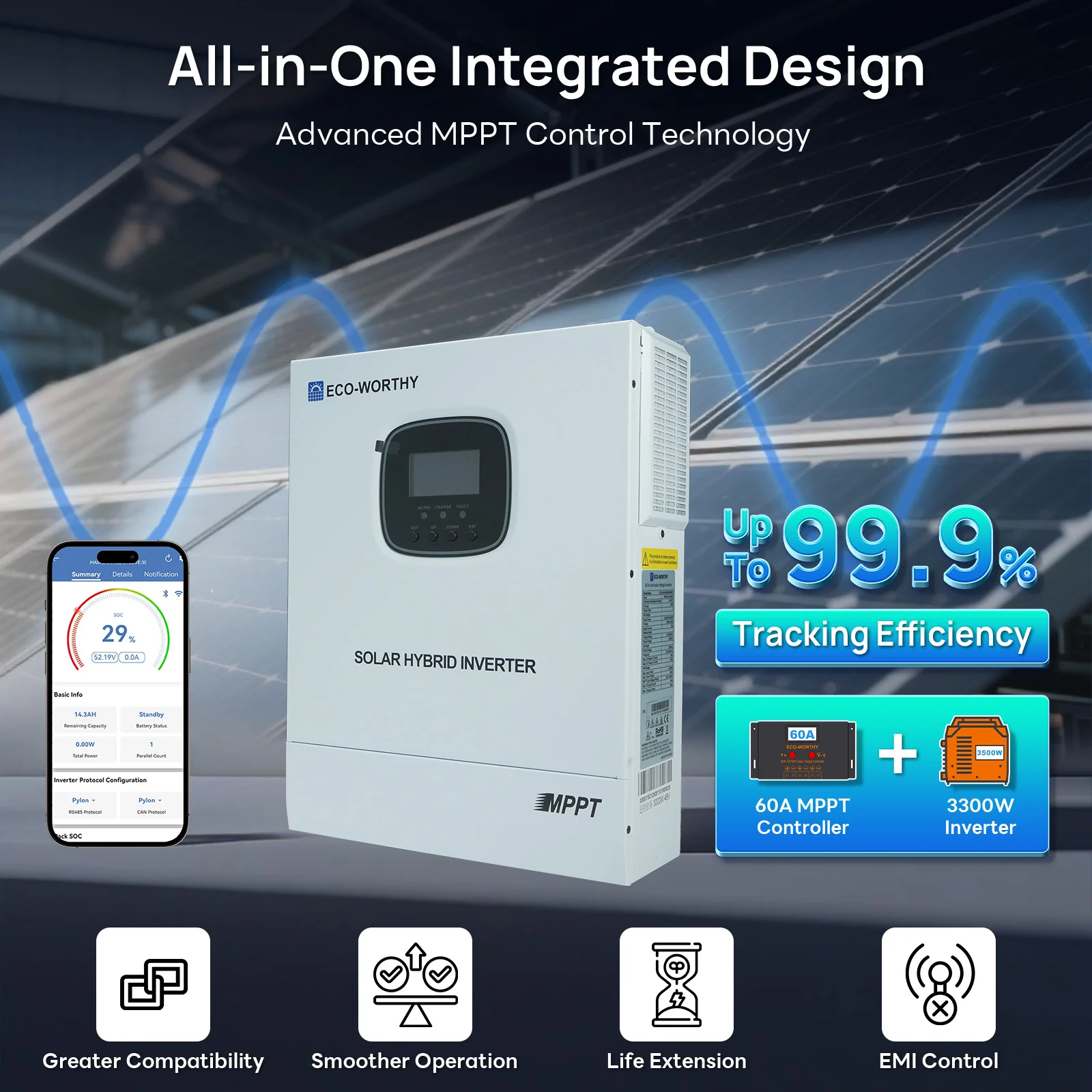

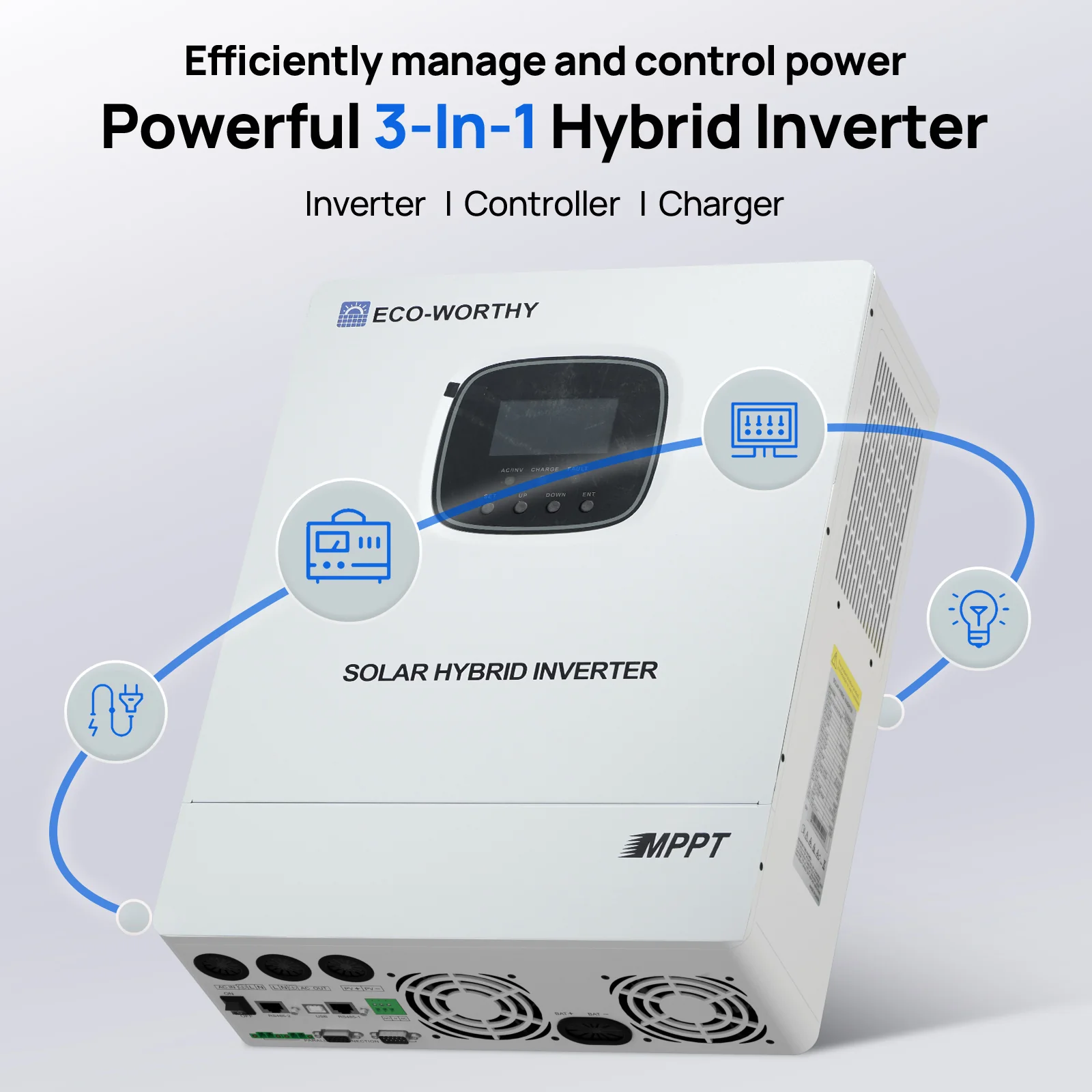

All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller
|
Models: ECO3000W(SR)
|
AC Rated input voltage: 220/230Vac
|
|
AC Frequency: 50Hz/ 60Hz (Auto detection)
|
AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3300w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: ＞92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |

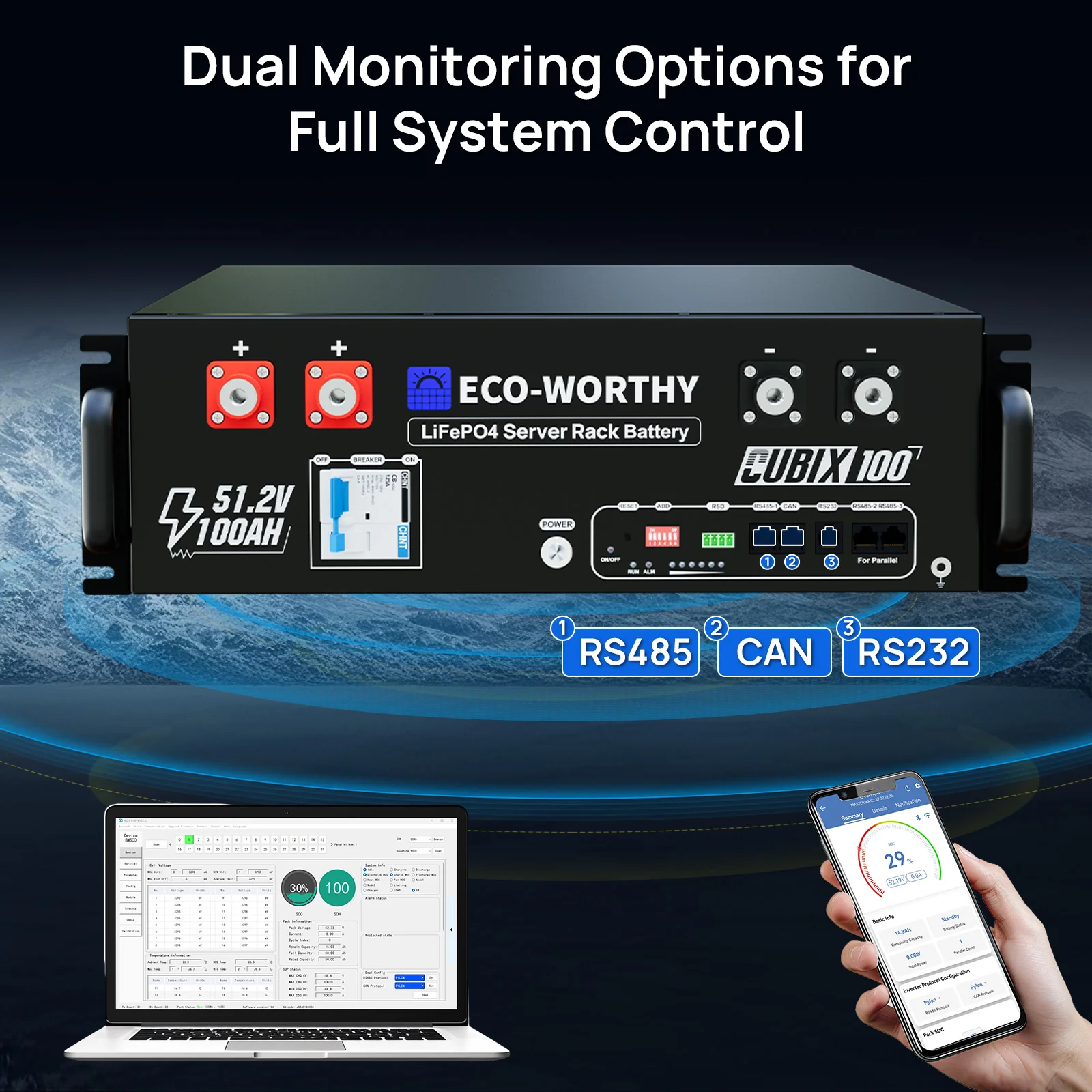

48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 96 lbs | Each battery comes with a pair of battery parallel cables |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit
1560W 48V (8x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Package Includes
8x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG Extension Cable with MC4-MC4
8x Z Mounting Bracket
Battery Bank Options-
5.12kWh Lithium Battery Bank (optional)
with
1x 48V(51.2V) 100Ah Server Rack Battery
1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
All-in-one Inverter Built in 3000W 48V Pure Sine Wave Power Inverter & 60A Controller
|
Models: ECO3000W(SR)
|
AC Rated input voltage: 220/230Vac
|
|
AC Frequency: 50Hz/ 60Hz (Auto detection)
|
AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3300w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: ＞92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |
48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 96 lbs | Each battery comes with a pair of battery parallel cables |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
