1170W 48V (6x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Package Includes
6x Bifacial 195W Mono Solar Panel
1x 3000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG MC4-MC4 Extension Cable
6x Z Mounting Bracket
Battery Bank Options-
5.12kWh Lithium Battery Bank (optional)
with
1x 48V 100Ah LiFePO4 Lithium Battery
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
All-in-one Inverter(3000W 48V Inverter+60A controller)
| Models: ECO3000W(SR) | AC Rated input voltage: 220/230Vac |
| AC Frequency: 50Hz/ 60Hz (Auto detection) | AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3300w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: >92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |

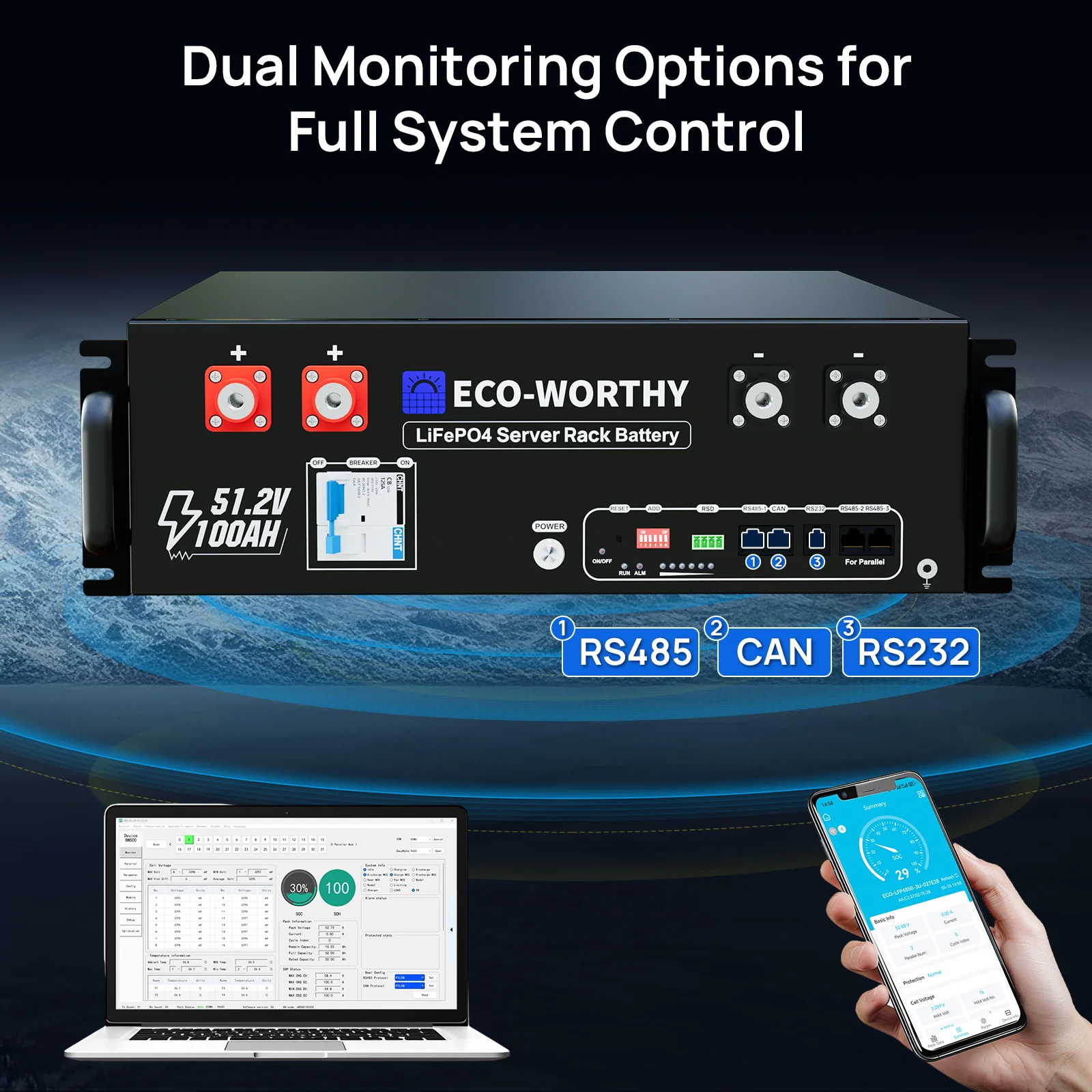

48v 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 99 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Test:IEC62619 |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 6 pieces of Z shape solar panel brackets | 12 pieces of stainless steel nuts and cap bolts |
