48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Package Includes
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Extension Cable with MC4-MC4
12x Z Mounting Bracket
Battery Bank Options-
10.24kWh Lithium Battery Bank (optional)
with
2x 48V(51.2V) 100Ah Server Rack Battery
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
5000W 48V All-in-one Inverter
| Rated Input Voltage: 220/230VAC | Maximum Efficiency: >92% |
| Input Voltage Range:
(170Vac~280Vac) ±2%, (90Vac-280Vac) ±2%
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
| AC input Max AC Bypass Current:40A | AC input MAX AC Charge Current:60A |
| Rated Output Power: 5000W | PV Operating Voltage Range: 120-500VDC |
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
Weight: 12kg (26.46lb) |

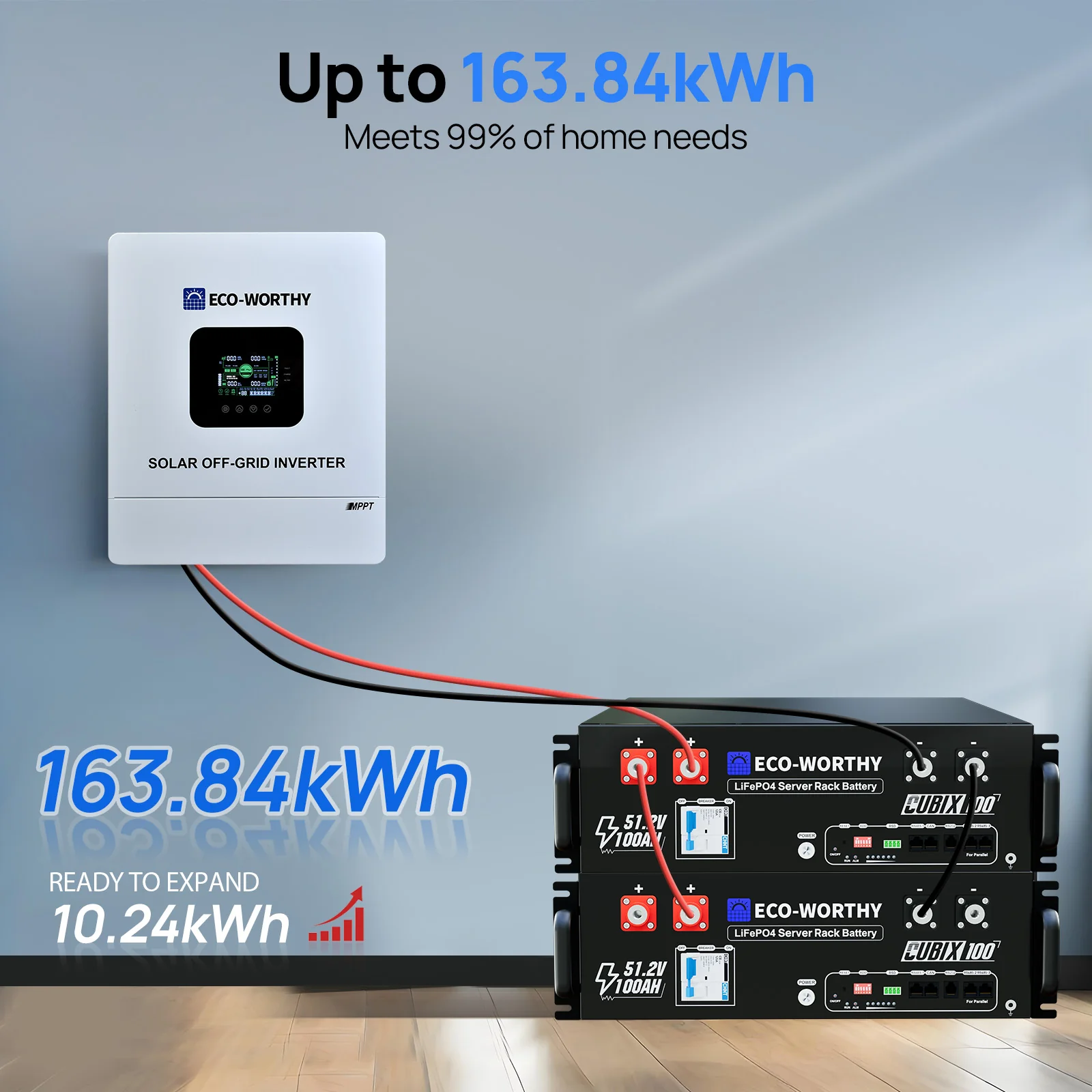

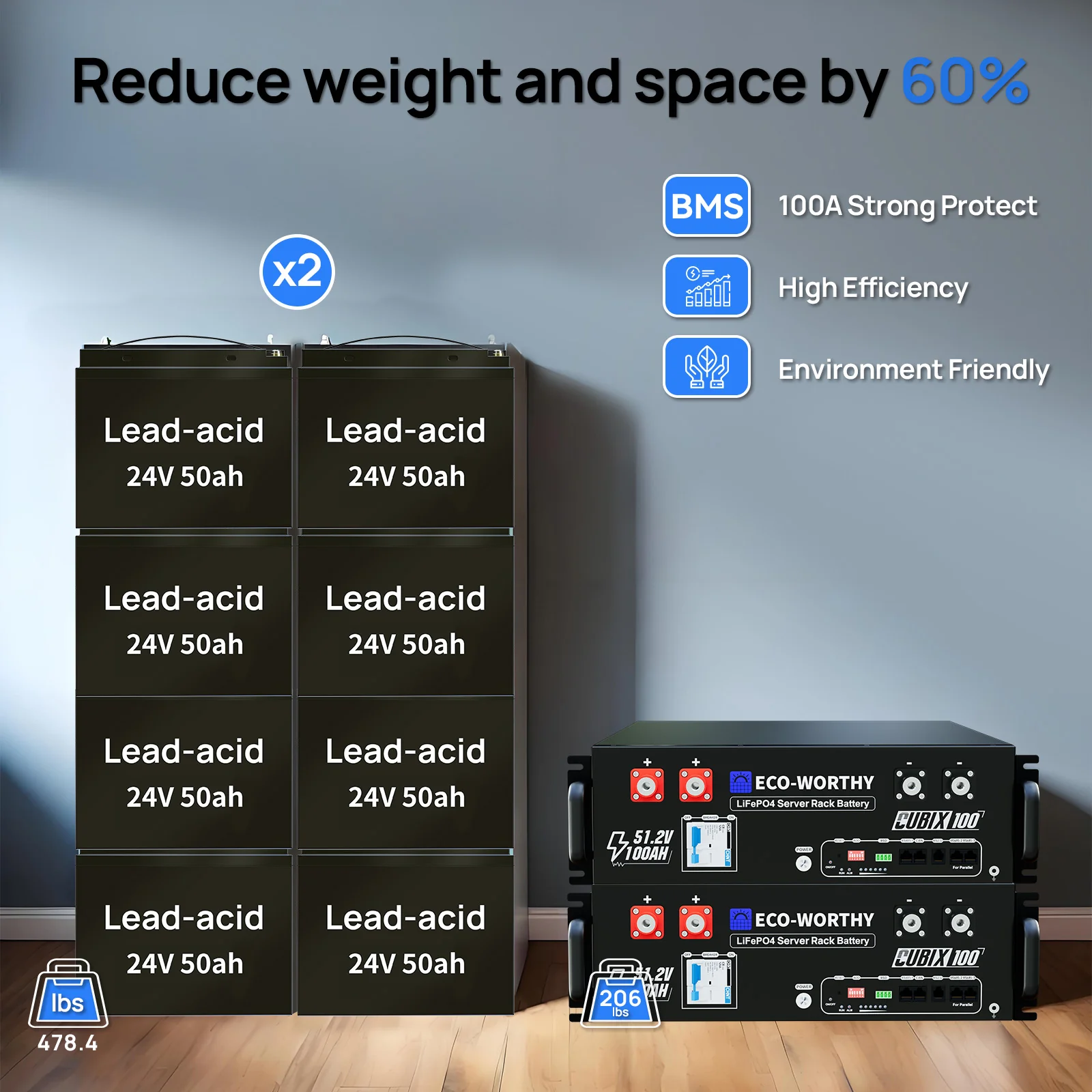

48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 99 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Test:IEC62619 |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
| AWG: 12 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Product Information
Product Information
Shipping & Returns
Shipping & Returns









48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit
48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit
Package Includes
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Extension Cable with MC4-MC4
12x Z Mounting Bracket
Battery Bank Options-
10.24kWh Lithium Battery Bank (optional)
with
2x 48V(51.2V) 100Ah Server Rack Battery
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
5000W 48V All-in-one Inverter
| Rated Input Voltage: 220/230VAC | Maximum Efficiency: >92% |
| Input Voltage Range:
(170Vac~280Vac) ±2%, (90Vac-280Vac) ±2%
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
| AC input Max AC Bypass Current:40A | AC input MAX AC Charge Current:60A |
| Rated Output Power: 5000W | PV Operating Voltage Range: 120-500VDC |
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
Weight: 12kg (26.46lb) |
48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 99 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Test:IEC62619 |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
| AWG: 12 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
