Package Includes
130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable
260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable

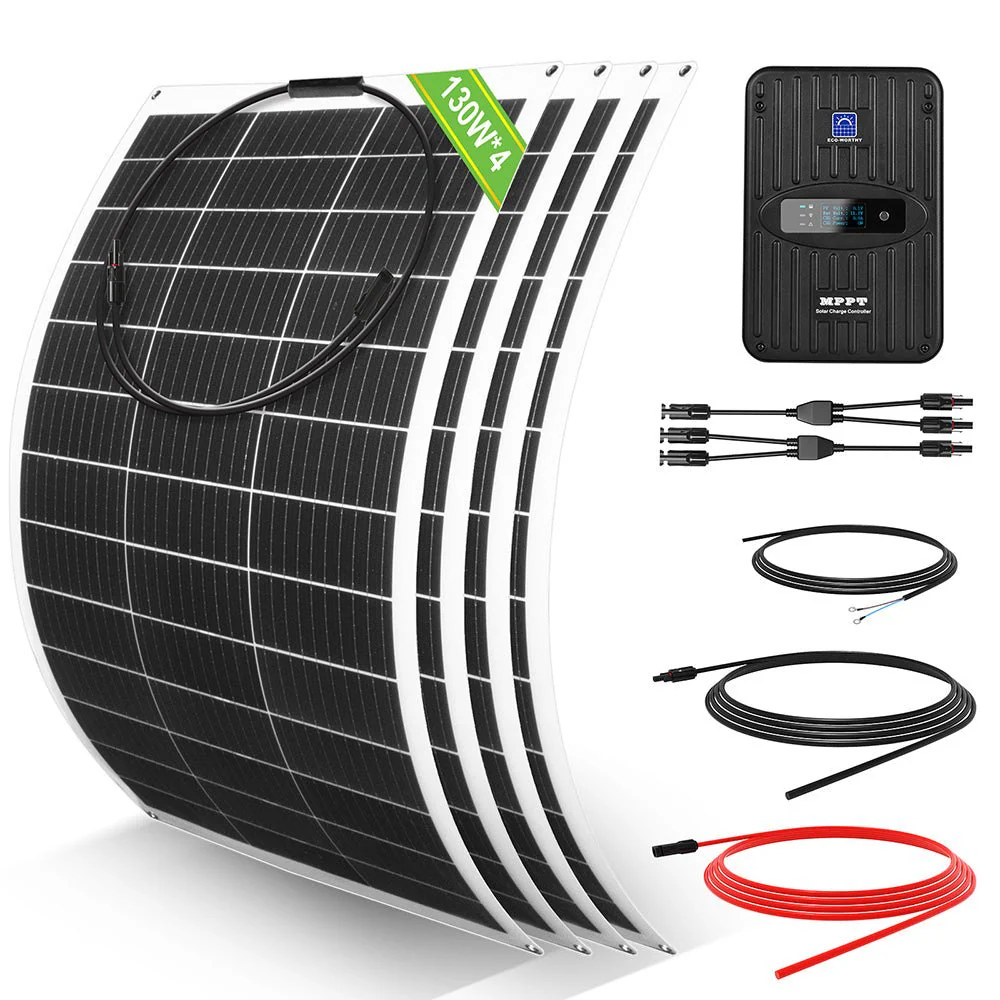

520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
1x 1.5M Tray Cable

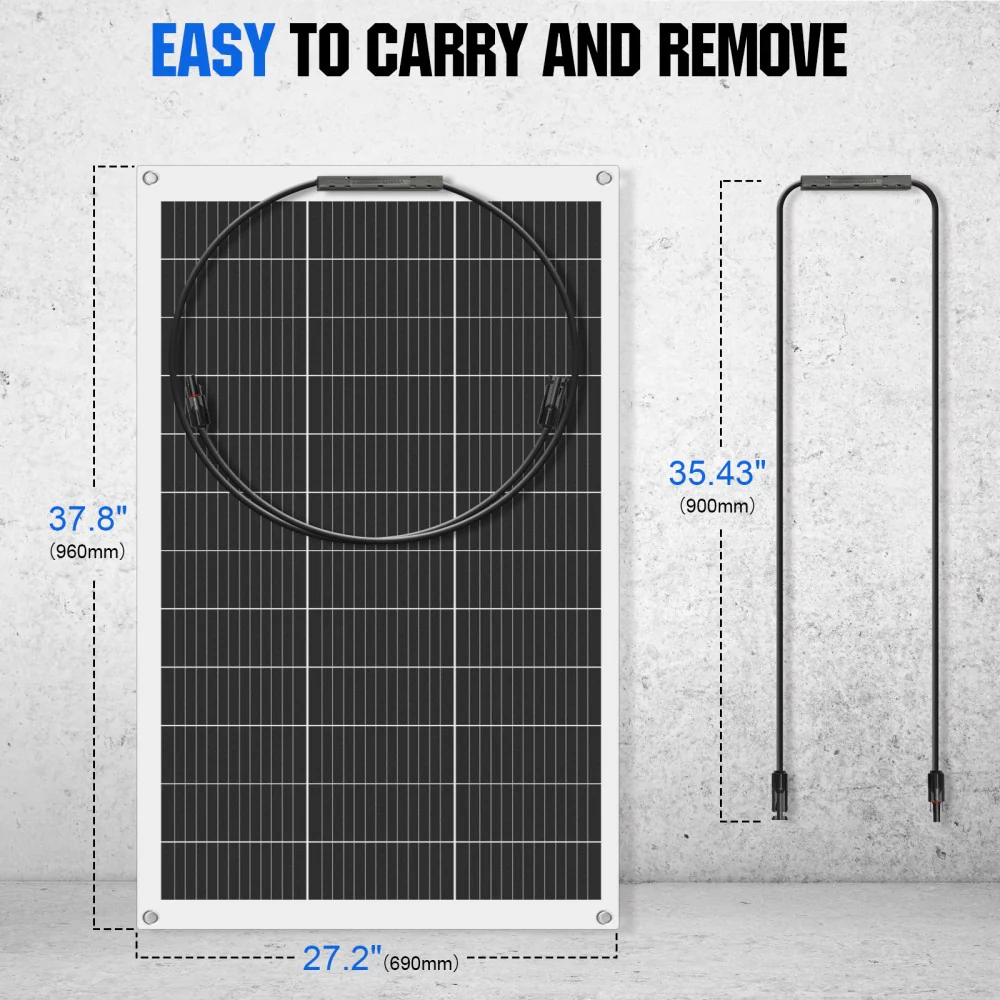

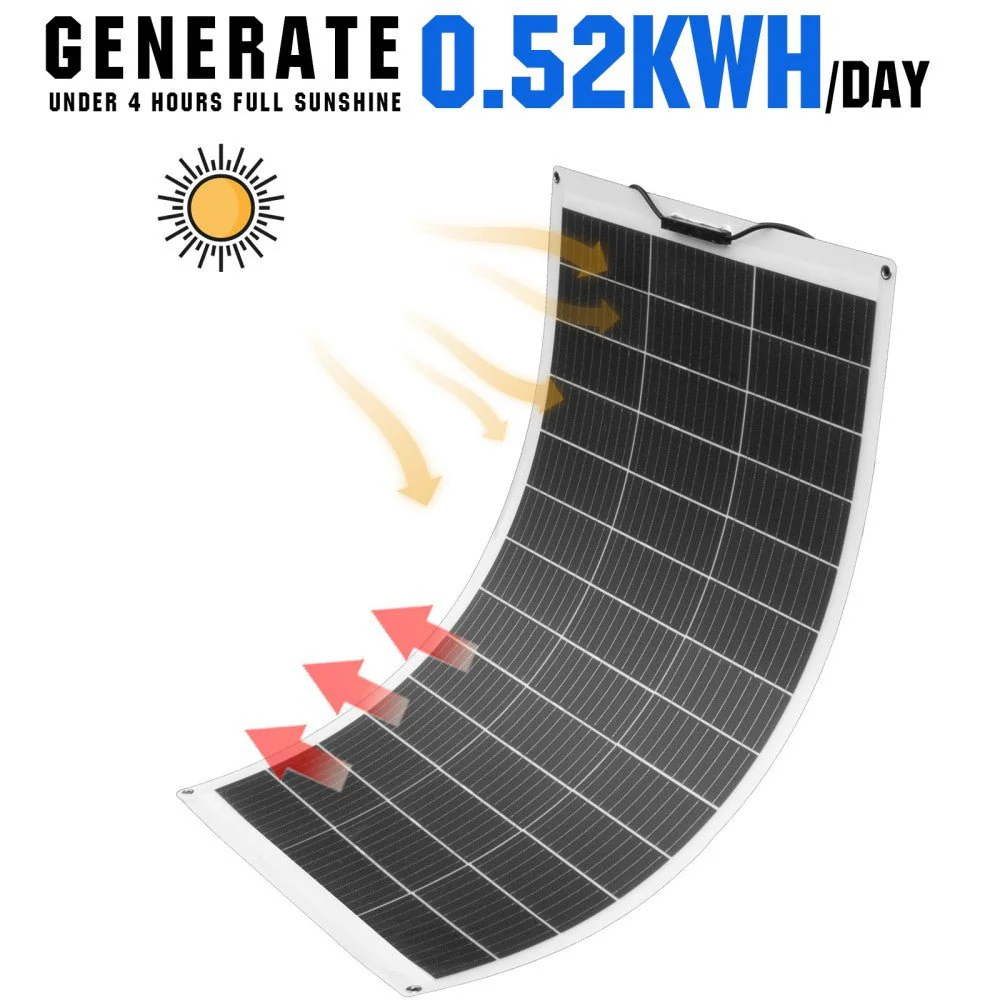

130W 12V Flexible Mono Solar Panel

Rated Power: 130W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 21.10V	Open Circuit Voltage(Voc): 24.50V
Short circuit current: 6.50A	Maximum current: 6.16A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Length of extension cable: 90cm（2.95ft）	Size of extension cable: 4mm²（11AWG）/MC4 Connector
Weight: 4.40 lbs(2.0 kg)	Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in)

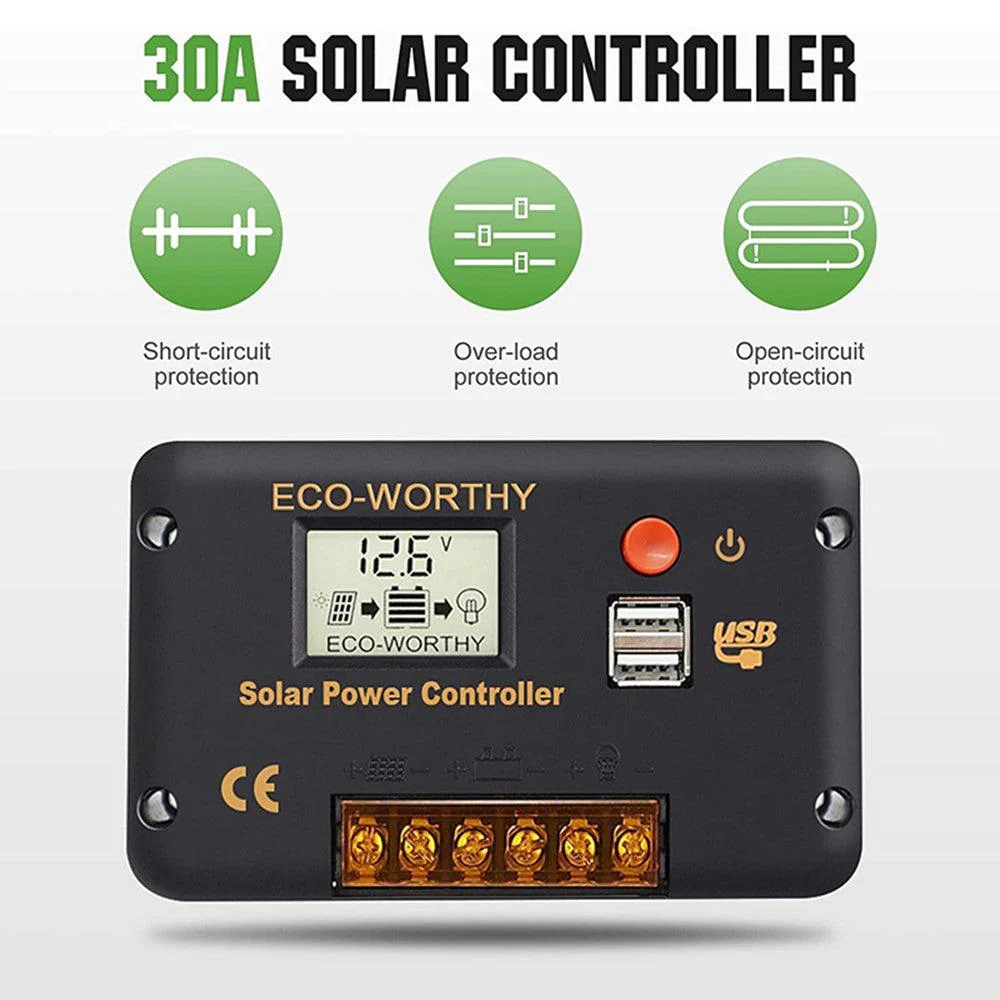

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

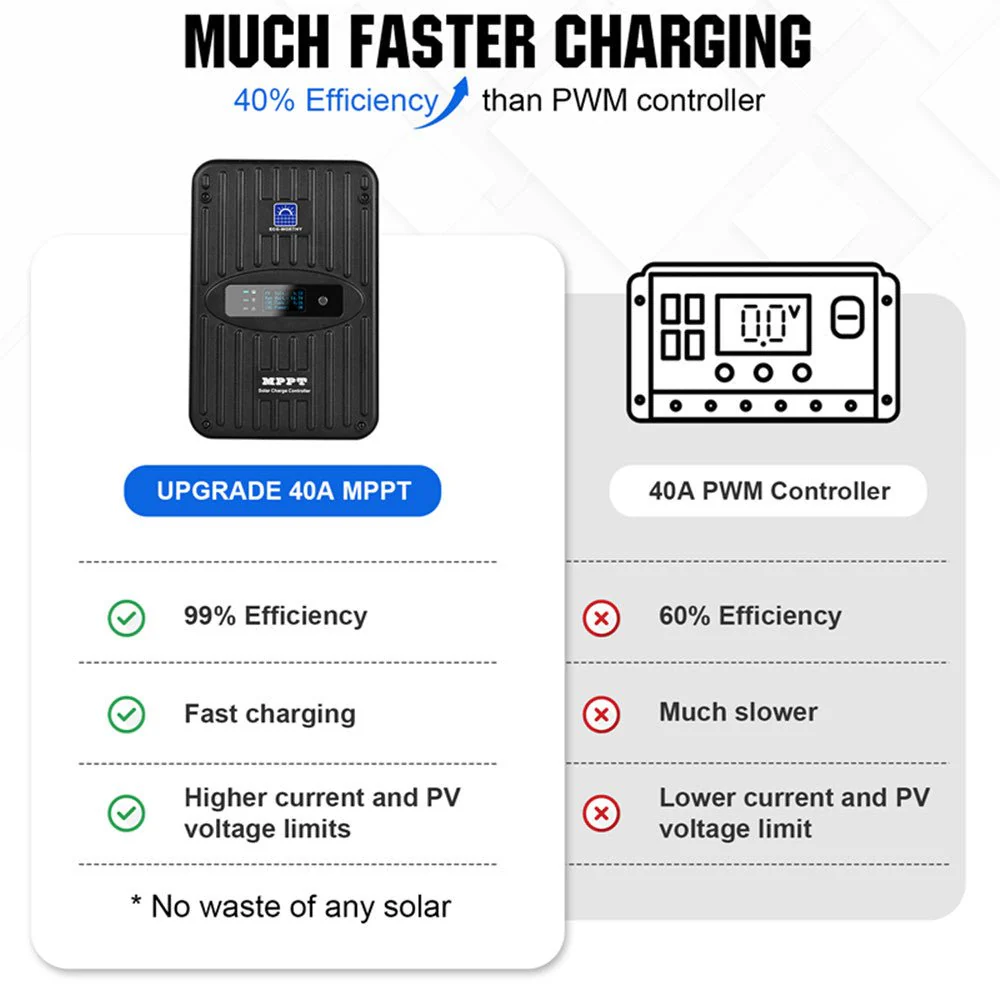

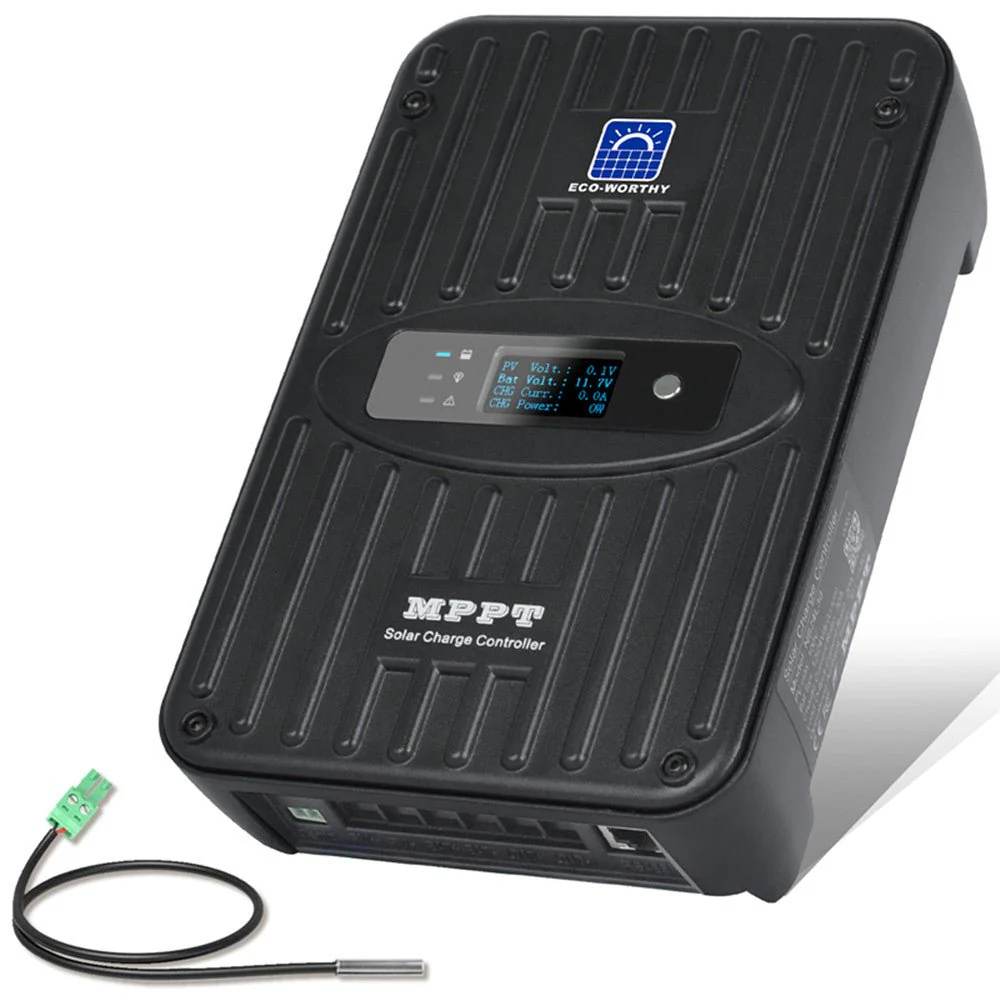

40A MPPT Solar Charge Controller

Battery voltage：12V/24V	Max Solar Input Power：560/1120W
Charging mode：MPPT	Rated Load Current：20A
Charge Efficiency (Peak)：97%	Self-Consumption：1~2W
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	Size：220*148*64mm/8.7*5.8*2.5inch
Max Charge current：40A	Weight：1.5KG
Max.PV Open-Circuit Voltage：<100V

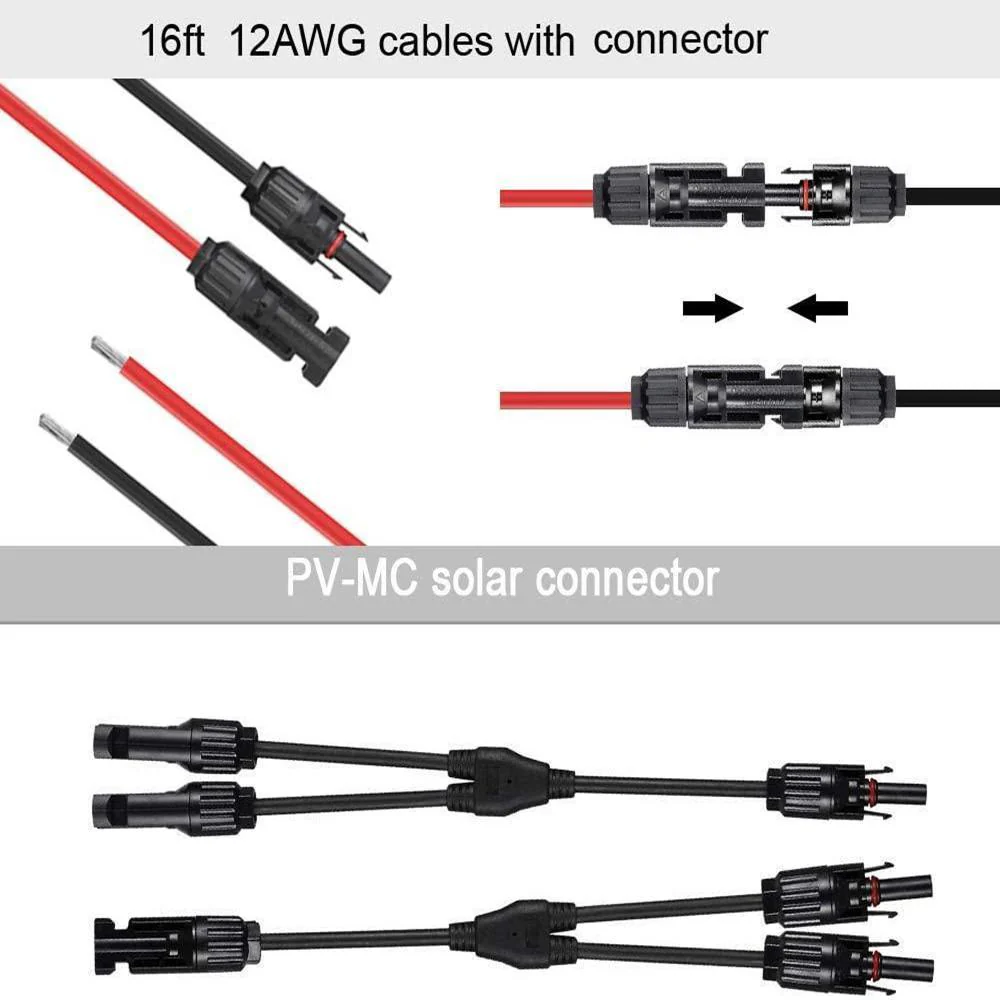

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
